Getting Started

In this section, we'll walk through the process of setting up the MegaGrid plugin. While the setup might seem detailed, this is intentional—each element is designed to be as simple and modular as possible, allowing for easy customization and replacement. This comes at the cost of extra work.

Note

If you're using one of our example projects, the steps below are not necessary as they've been already prepared.

1. Project Settings

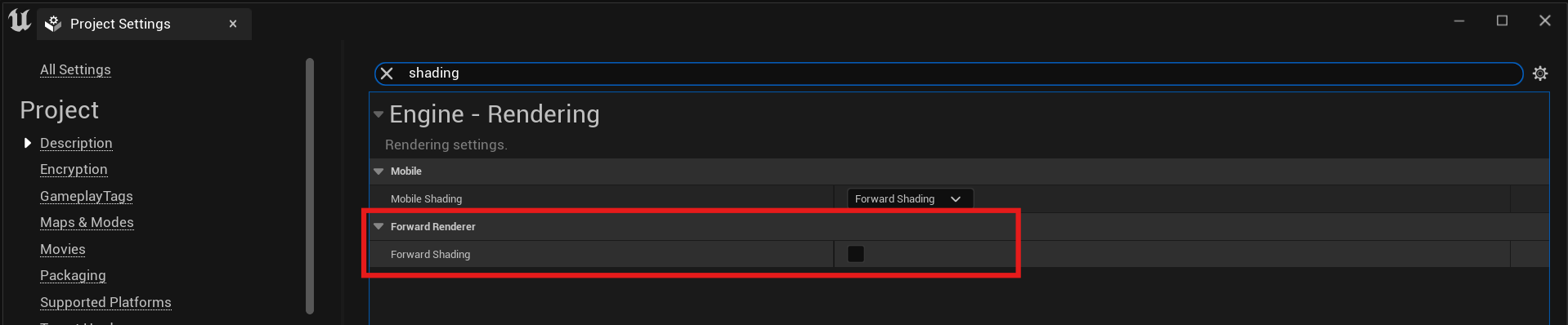

  1. To get started, go to Edit → Project Settings → Rendering and set Custom Depth-Stencil Pass to Enabled With Stencil. This is required for Zero Aliasing Grid and tile materials to work properly.

    alt text

  2. Next search for "Trace Channel" and add two new channels in this order:

    • AutoMap - Set to Ignore.
    • GridSurface - Set to Ignore.

    alt text

The exact names and order of creation aren't critical, as you'll set these new channels manually in the GridManager blueprint later. However, for the sake of simplicity, I’ve made these recommendations. That said, it is crucial to set the Default Response of these channels to Ignore.

Note

In the example project, there's an additional Unit channel. While it's used for agent selection in the example, it's not essential for the basic grid functionality.

2. Surface Preparation

Next, we need a Grid Surface, which is any mesh that will serve as the surface for our grid. For this tutorial, I'll use the default landscape from a new project, but you can also work with custom heightmaps and meshes. We'll cover creating custom grid shapes later. Once you've chosen a surface, follow these steps:

  1. Select your surface. If you're using landscape proxies, select all proxies.

    alt text

  2. Go to the details panel, search for "Custom Depth" and enable Render CustomDepth Pass and set the Stencil Value to 77. If your project already uses this specific value, it can be changed in the material instances of Zero Aliasing Grid.

    alt text

  3. Next while keeping your surface selected, search for "Collision". Change the Collision Presets to Custom, and under Collision Responses, set your newly created GridSurface channel to Block.

    alt text

  4. Lastly you'll need to add an actor tag to the surface with the string "GridSurface". This will be required later for tile generation.

    alt text

    Tags

    "Why tags when you have a trace channel?" You might ask. Well this has to do with modularity and the versatility of the plugin. Imagine you want to block a certain area from generating tiles, you can use a "blocking" mesh with the same collision response but this time without the tag, this will ensure you skip that area.

3. SaveHandler

Warning

This actor is mandatory for the grid to function.

With the surface now prepared, it's time to add the SaveHandler to the scene. The BP_SaveHandler actor manages .sav files, allowing each level to have its own unique save file and grid system. Neither the BP_SaveHandler nor its parent class store any data directly; instead, they tell the subsystem when to load and save data. During the initial save, the default grid settings are initialized, including an empty GridData TMap.

  1. First, navigate to Plugins/MegaGridContent/Blueprints/Core/ and drag BP_SaveHandler into the scene. Location doesn't matter.

    alt textalt text

  2. Once the actor has been placed, select it and search for "Save" in the details panel.

    alt text

  3. Now you'll need a SaveName to hold the grid data. Each level can have its own SaveName, resulting in level based grids. Here I'm simply using the name "TutorialSave", feel free to get creative here.

    alt text

  4. Next we need a default save, to do that simply press the Save Grid. And to load it, press the Load Grid. This must be done in order.

    Warning

    The save and load procedure is mandatory for the grid to function.

    alt text

  5. If you've done everything correctly, you'll see these logs.

    alt text

  6. Next if you scroll to the Core Dependencies section of the SaveHandler, you'll notice empty references to GridVisuals and GridManager. These are important but we'll come back to it later, when we have all the actors placed in the scene. SaveHandler References

    alt text

That wraps up the SaveHandler setup! Your grid is now loaded with its default settings. The newly generated .sav file can be found here: YourProjectFolder/Saved/SaveGames

4. GridVisuals

Warning

This actor is mandatory for the grid to function.

  1. Now that we have an abstract grid, let's get some visuals going. Navigate to Plugins/MegaGridContent/Blueprints/Core/. Find BP_GridVisuals and drag it into the level.

    alt text

  2. If you've done everything right so far, you'll see a default square grid.

    alt text

In most cases, BP_GridVisuals isn’t meant for direct interaction. Its visuals are managed by other classes like GridManager and TileEditorMode. For advanced customizations, you may need to explore the various options available in this blueprint, which are covered in detail in its own section. For now, simply leave BP_GridVisuals as it is.

Note

If you don't see the grid, it might be because you haven't set the custom depth settings properly or you might've not properly created the save. Try the previous steps again and if you still cannot figure it out, feel free to reach out.

5. GridManager

Warning

This actor is mandatory for the grid to function.

With both the save system and visuals set up, we can now move on customizing the grid using BP_GridManager. This actor serves as the bridge between data and visuals, allowing access to key grid functions. Through this class, you can manage tile data, grid data, and other essential settings.

  1. Navigate to Plugins/MegaGridContent/Blueprints/Core/ Select BP_GridManager and drag it into the level.

    alt text

  2. Now go to the details panel, and search for "GridVisuals" and set the reference to the existing BP_GridVisuals. This will immediately shrink your grid to match the settings present in BP_GridManager.

    alt text

  3. Next, we need to assign the trace channels we created. Navigate back to the Default section, where you'll find two exposed trace variables: GridSurfaceChannel and AutoMapChannel. If you followed the recommended creation order, they should already be assigned correctly. If not, simply select the appropriate channels manually.

    alt text

  4. With that done, you can now start customizing the looks of your grid. Including switching its shape to hex!

    alt text

5.1. SaveHandler References

Before we get into creating the tiles, let's go back to the BP_SaveHandler and assign those references.

alt text

These references are essential for executing specific functions, such as synchronizing BP_GridManager's exposed variables with the loaded save and loading the appropriate visuals in BP_GridVisuals. Each time you open a level, the save handler takes care of loading the grid, including both the data and visuals.

6. Creating the Grid

Now, it's time to create the grid, which involves generating the actual tiles. As we create the tiles, the data side of the grid will also be populated with tile information, essential for any interactions. At this point, the grid only has material-based visuals, but these offer a good preview of how the data side will be structured. Be sure to set your preferred TileCount and GridSize before proceeding.

Once you're set, come to the default section of the BP_GridManager and click the CreateGrid button. This will generate all the tiles in your grid.

alt text

Note

Depending on the TileCount, the creation process may take some time. Allow up to 30 seconds for larger grids.

If you don't see anything, don't worry just yet. By default, all tiles are set to the "Default" type, meaning their colors will be transparent. To confirm that the tiles have been created, select the BP_GridVisuals and check the outline of the tile instances.

alt text

Bug

Severity: Negligible

If you find that the bounds are outside the grid, it's because the default TileCount hasn't been updated after assigning the GridVisuals. The data still assumes there are 100x100 tiles, while the visuals only expect 20x20 tiles. To resolve this, simply adjust the TileCount, and everything should align correctly.

If you can see it, then congratulations! You've created your very first grid. If you cannot, there are three areas to check.

  • Whether you've properly assigned the trace channels in BP_GridManager.
  • Whether your surface is properly blocking the GridSurface channel.
  • Whether you have assigned the "GridSurface" actor tag to your surface.

Verifying Interactions

You can verify if the tiles have been properly generated by pressing play and checking if the tile under the cursor highlights. (Ignore the red tiles, we'll get into that in the next section.)

alt text

The highlighting is managed by a built-in BP_GridManager function that runs every 0.03 seconds. For high-frequency calls, I recommend using Timer by Event() or Timer by Function Name() instead of relying on Tick(), which should be avoided whenever possible.

alt text

7. Basics Completed!

If you've been able to create an interactive grid, then congratulations! You have now completed the basics! In the next sections we'll cover slightly more advanced topics. Till then you can play around with generating random obstacles by checking the Random Obstacles boolean in BP_GridManager, and then hitting CreateGrid again.

alt text

You can adjust the obstacle spawn rate via Obstacle Spawn Rate.

alt text

Feel free to play around with other settings as well! If you're in the mood to close your project and return later, be sure to manually save the grid by hitting CTRL + S and going to the BP_SaveHandler and hitting the Save Grid button. Currently the plugin doesn't support auto-saves. (Which will be covered in its own section).

alt text
