Pathfinding

Pathfinding Component

MegaGrid includes a high-performance pathfinding system, managed by a dedicated Pathfinding component. Being a component, it allows for Multi-Agent pathfinding, enabling each agent to have unique movement characteristics. The algorithm itself is a custom implementation of A*.

Features:

  • Handles large grids (up to 300x300) efficiently using async functionality.
  • Considers TileTypes, including movement costs.
  • Compatible with both Hex and Square grids.
  • Supports diagonal pathfinding.
  • Allows for highly customizable agent behavior.
  • Optimized for high-frequency pathfinding requests.
  • Includes built-in a Move On Path function.

How to Path Find

  1. To set up pathfinding, simply add the Pathfinding component to any actor of your choice. If you're starting with a blank actor, refer to BP_GridInteractions for a practical example of how pathfinding is implemented. This will give you a solid foundation to build upon.

    alt text

  2. After adding the component, you'll need to configure a few settings. First, specify whether the pathfinding operates on a hex grid. Next, assign your TileTypeMapping data table—this is essential for retrieving movement costs. If your agent needs to avoid obstacles, add the Obstacle type to the TypesToBlock array.

    alt text

  3. You can now test your pathfinding by calling the FindPath() function from the Pathfinding component. Below is a simple setup demonstrating its usage.

    alt text

    The inputs are the indices of the start and target tile. Here we just pass in random values. The FindPath() function returns a PathStruct, which includes the indices of the tiles forming the path and a PathCompleteReason enum. This indicates whether the pathfinding was successful or, if not, provides the reason for failure.

    alt text

  4. To visualize the path, you would typically modify a series of TileState. I won’t go into detail on that here, as you can find a complete implementation in the DrawPath() event inside BP_GridInteractions. However, for now, I'll use debug boxes for a simple visualization.

    alt text

Basic Pathfinding Settings

  • MaxIterations: Sets the upper limit on how many iterations the pathfinding algorithm can run before stopping. If this limit is exceeded, the pathfinding returns an empty path with a PathNotFound reason. Keep this value as low as possible to avoid long wait times.

  • MaxPathLength: Defines the maximum number of tiles allowed in a path. If this limit is exceeded, the algorithm returns an empty path with a TargetTooFar reason. This is useful for customizing agent-specific behavior.

  • TypesToBlock: Any tile type added to this array will be completely avoided by the pathfinding algorithm. This is more efficient than assigning high movement costs since blocked tiles are excluded from complex calculations altogether.

  • TypesToIgnore: Any tile type added to this array will be completely ignored by the pathfinding algorithm. This can be useful when designing characters that can bypass certain tile types.

  • StatesToBlock: Any tile state added to this array will be completely avoided by the pathfinding algorithm. While states are not typically used for pathfinding interactions, there are cases where this can be useful—such as temporarily avoiding a building zone during placement.

Static Pathfinding

"Static Pathfinding" is a general term referring to one-time or low-frequency pathfinding operations. It can be thought of as a system where pathfinding is triggered only when the user clicks to set a start and target position. Essentially, it's a "click to activate" system. This should not be confused with synchronous pathfinding, as static pathfinding can also be asynchronous. The key difference lies in the frequency at which pathfinding is triggered.

Synchronous Pathfinding

FindPath() is a synchronous function. While MegaGrid provides robust async pathfinding, it's best to use synchronous pathfinding whenever possible, as async pathfinding offers little advantage for small to medium-sized grids. Since FindPath()—along with most other MegaGrid functions—runs on the Game Thread, Unreal automatically manages the execution order.

Asynchronous Pathfinding

FindPathAsync() is an asynchronous function. This function calls pathfinding in a different thread altogether, this helps in avoiding performance drops during calculation of long paths and also opens up possibility for a real-time pathfinding system.

This however must be used very cautiously, since we're dealing with multiple threads accessing the same grid data, there can be cases of race conditions. I've thoroughly tested this function with upwards of 20 threads running simultaneously and have encountered no issues but even still I couldn't have accounted for system variables (which are unique to each computer).

Most race conditions can be avoided by using ScopeLock, which locks a piece of data when one process is using it avoiding overlaps. See bScopeLock

How to Async Path Find

  1. To perform pathfinding asynchronously, call the FindPathAsync() function. This function takes the same arguments as FindPath(), requiring a start tile index and an end tile index. The key difference is that it does not return a result immediately. Since the function runs asynchronously, the pathfinding result is only available once the calculation is complete.

    alt text

  2. To receive the pathfinding result, you need to bind an event to your actor. Select the Pathfinding component, go to the Details panel, find the Events section, and add the OnPathComplete event. This will create an event in your event graph, allowing you to handle the pathfinding result once it completes.

    alt text

    alt text

  3. Here's a basic Blueprint workflow. It closely resembles the synchronous workflow, except that the output is handled differently due to the asynchronous nature of the function.

    alt text

  4. For practical examples on async pathfinding, including Real-Time implementations, I highly recommend exploring the example projects and the BP_GridInteractions actor.

    alt text BP_GridInteractions

Advanced Settings

  • bUseDiagonals: Activates diagonal pathfinding for square grids.

  • bUseWeightedDiagonals: Adds DiagonalCost to diagonal pathfinding.

  • DiagonalCost: Higher costs will make paths less diagonal.

  • bUseMovementCost: Does the pathfinding account for movement costs? When OFF, performance is drastically improved at the cost of accuracy.

  • DistanceBias: How much does the pathfinding lean towards distance? Higher the value, less accurate but faster. (Default 0).

  • HeuristicSizeMultiplier: Value for affecting distance, depends on TileCount. Use lower values for smaller grids, vice versa.

  • MovementCostBias: How much does the pathfinding lean towards movement cost? Higher the value, higher accuracy but slower. (Default 1).

  • bUseHeap: Uses heap optimization, may improve accuracy.

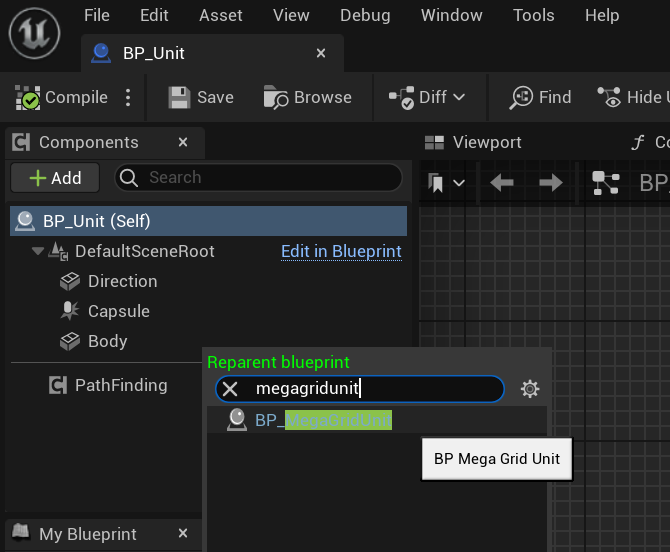

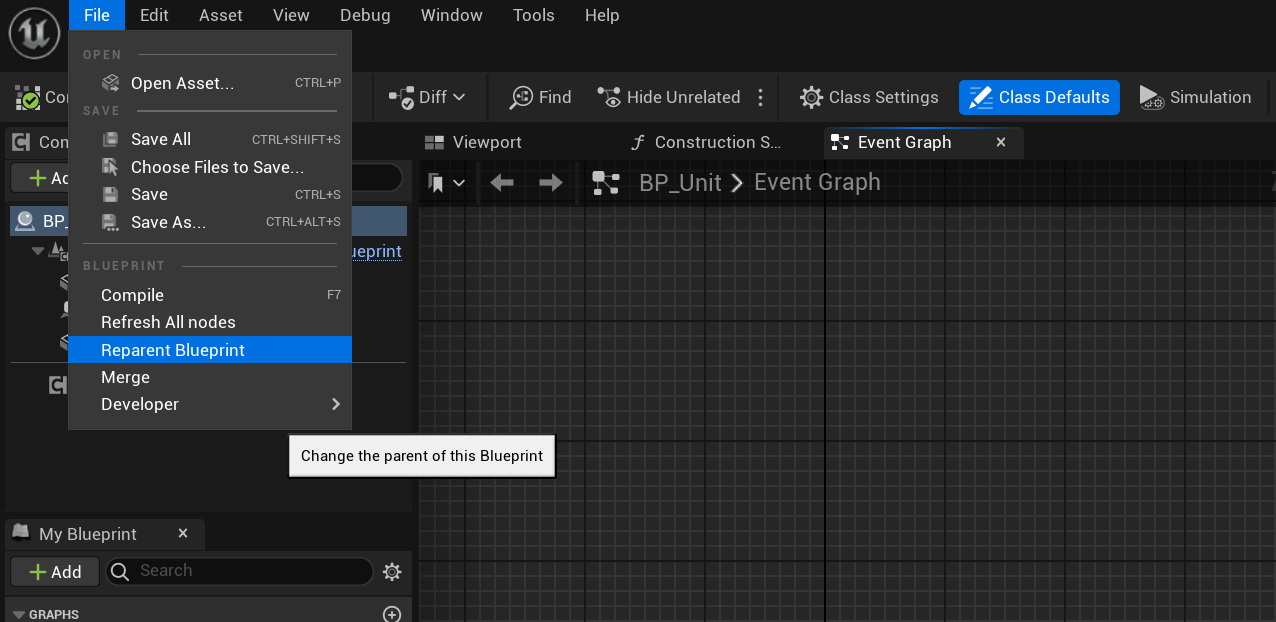

Moving Object on Path

The Pathfinding component includes a C++-based function for moving objects along a given path. While this built-in method offers several parameters for control, I recommend implementing a custom Blueprint-based movement system for greater flexibility. However, if you want a quick solution, you can use the StartMovingOnPath() function, which takes the following parameters:

  • Path: An array containing the tile locations that form the path.
  • Interval: The time interval between each movement update (functions like a timer).
  • LerpSpeed: The speed at which the object transitions between tile locations.
  • Delay: The wait time before each movement step. A value of 0 results in smooth movement, while higher values create a tile-by-tile stepping effect.

alt text

Usage

  1. First, bind the FollowPath() event through the Pathfinding component's Details panel. This will automatically add the event to your Event Graph.

    alt text

    alt text

  2. Next, calculate the path locations by retrieving the location from the TileTransform of the TileData. You can do this by calling the GetTileData() function and using the resulting data to get the locations for each tile in the path index array.

    alt text

    You can also see that I've used the GetSurfaceLocation(). While it's not strictly necessary, using it can improve accuracy, especially when dealing with uneven terrain or when you need precise positioning.

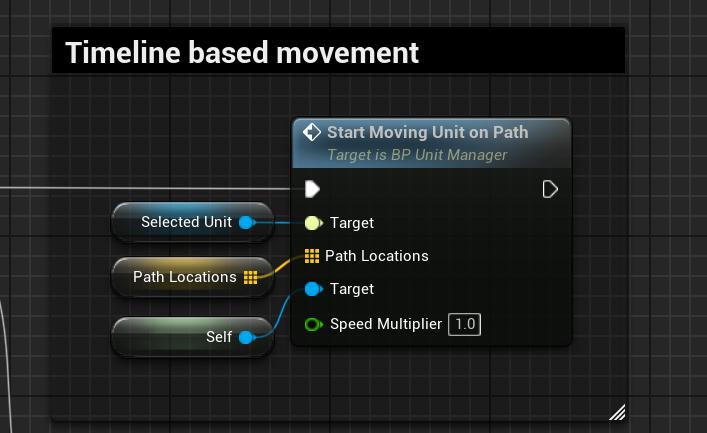

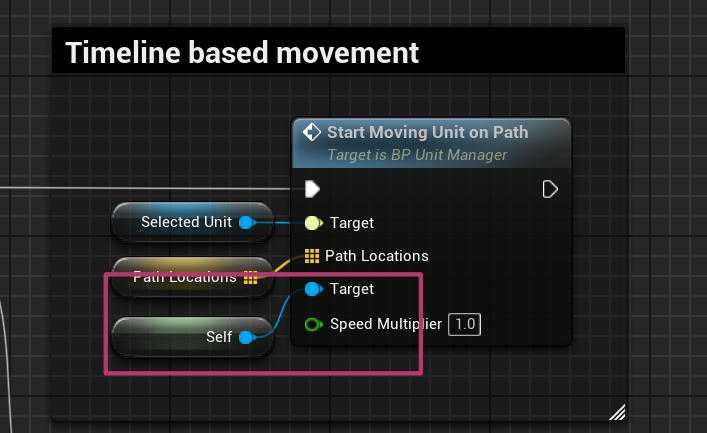

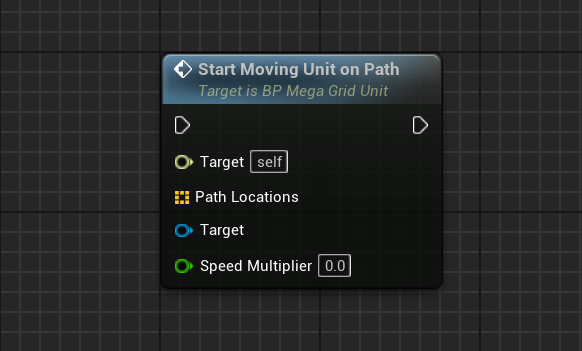

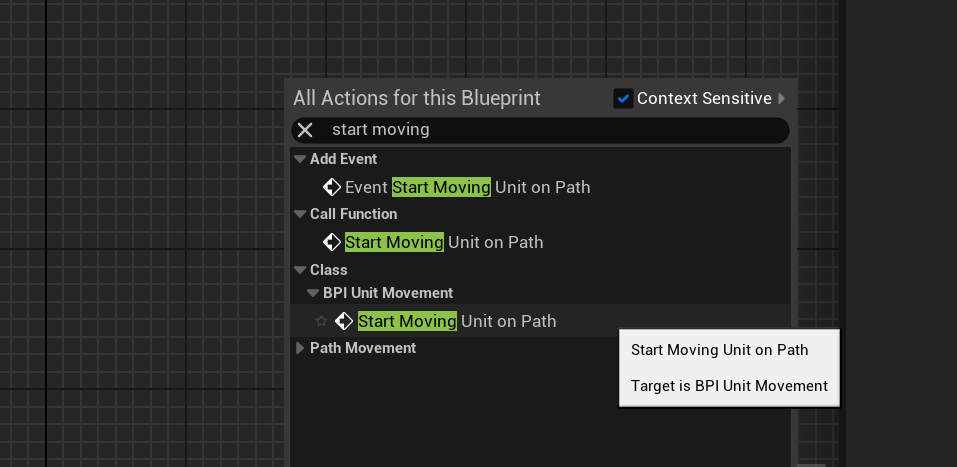

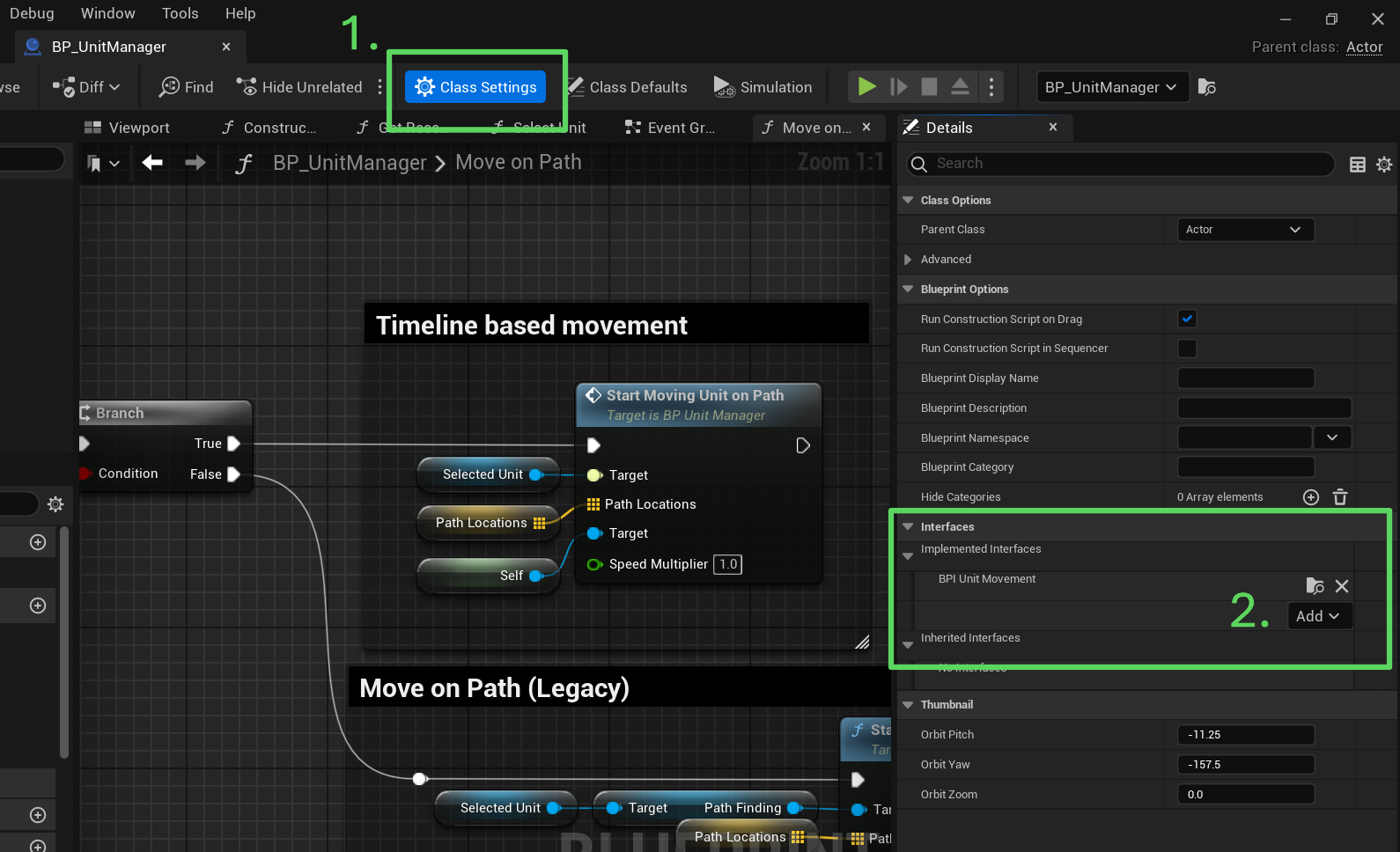

  3. Call StartMovingOnPath() with the necessary parameters.

    alt text

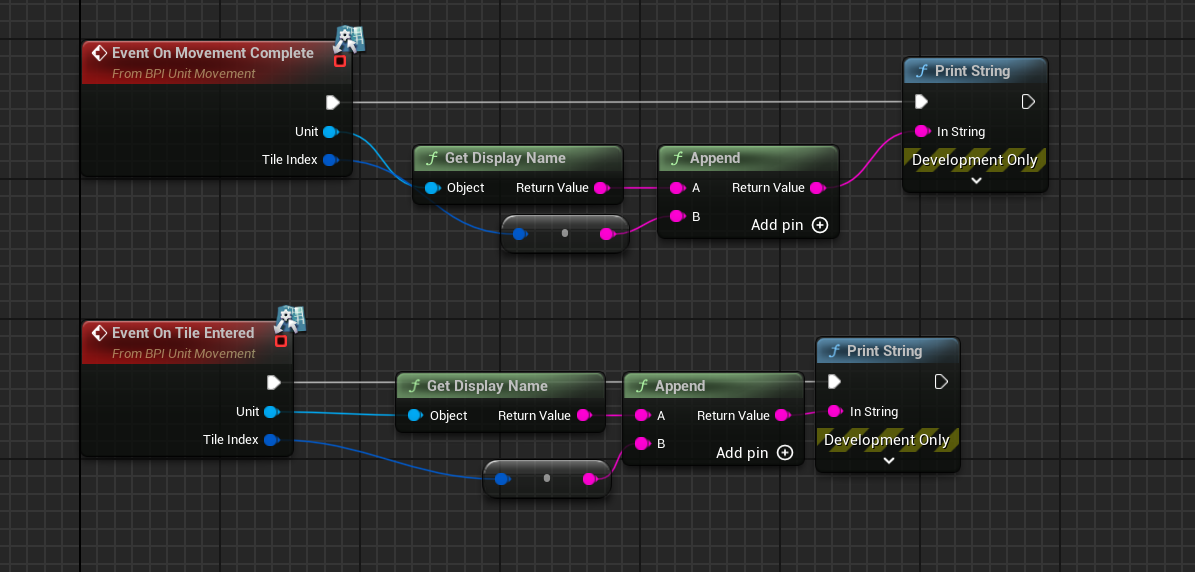

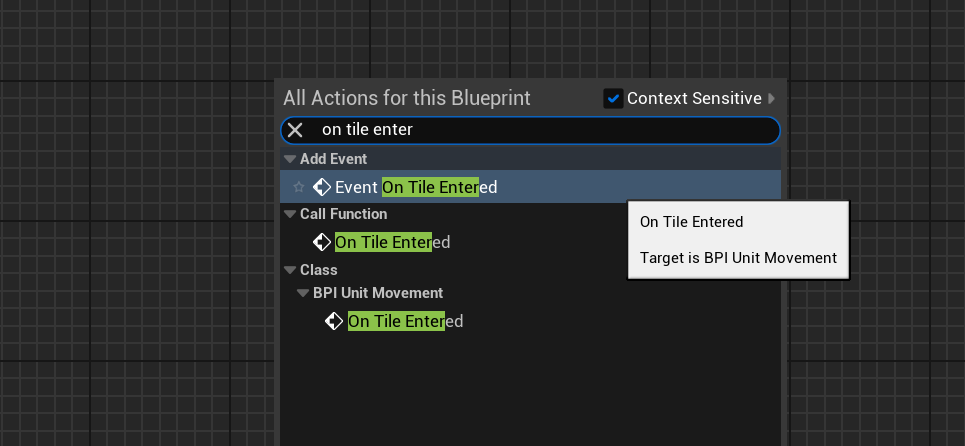

  4. The MoveOnPath event is triggered during each iteration of the movement process, allowing you to update the position and rotation of the actor. This gives you full control over the actor's movement along the path, allowing for smooth transitions and rotation as it progresses along the tiles.

    alt text

    Again, I recommend checking out the BP_GridInteractions actor for practical examples.

Avoiding Obstacles

There are two ways to avoid tiles of a specific TileType.

The first method is by adding it to the TypesToBlock array in the Pathfinding component. Any type added to this array will be considered invalid, essentially treating it as though it doesn't exist for pathfinding purposes.

The second method involves setting high MovementCosts using the relevant data tables. Pathfinding will naturally avoid these high-cost tiles in favor of more efficient paths. If a TileType is added to the TypesToIgnore array, it will be considered the path of least resistance and be prioritized.

alt text

Pathfinding avoids triple cost (yellow) tiles.

Large Scale Pathfinding

The Pathfinding component is optimized for handling large grids. To take full advantage of its capabilities, use FindPathAsync() for grids larger than 200x200. This prevents FPS drops and ensures a smooth player experience. While high-frequency async pathfinding has been tested on large grids, it should still be used cautiously, as certain settings may cause frame drops.

To maintain smooth real-time async pathfinding on massive grids, here are some best practices. These settings have been tested on MegaGrid's maximum supported size of 300x300 tiles.

1. Limiting MaxPathLength and MaxIterations

Always set limits on these two parameters, regardless of grid size.

  • MaxPathLength should never exceed an agent’s available movement points.
  • MaxIterations rarely needs to be higher than 40,000.

2. Dynamically Adjusting Biases

As explained in the Advanced Settings, pathfinding uses specific biases that can be adjusted for better performance.

  • Preliminary Pathfinding (Real-Time Cursor Movement):
    Increase DistanceBias to be greater than MovementCostBias. This sacrifices accuracy but allows for quick path previews while moving the cursor.

  • Final Path Calculation (When Selecting a Target Tile):
    Reverse the biases—set DistanceBias lower than MovementCostBias. This prioritizes movement cost, leading to a more accurate final path.

This method balances performance and accuracy: the initial real-time pathfinding is lightweight, and only the final selection triggers a more precise but expensive calculation.

You can see this implementation in action in BP_GridInteractions.

alt text

End Note

There’s likely much more to pathfinding than what I’ve covered here—it could easily fill an entire separate document! I also don’t remember every technical detail that goes into the algorithm.

If you come across something that isn’t covered, feel free to reach out!

This guide should give you a solid starting point for pathfinding in MegaGrid. Be sure to check out the provided example projects to get familiar with implementation best practices.
